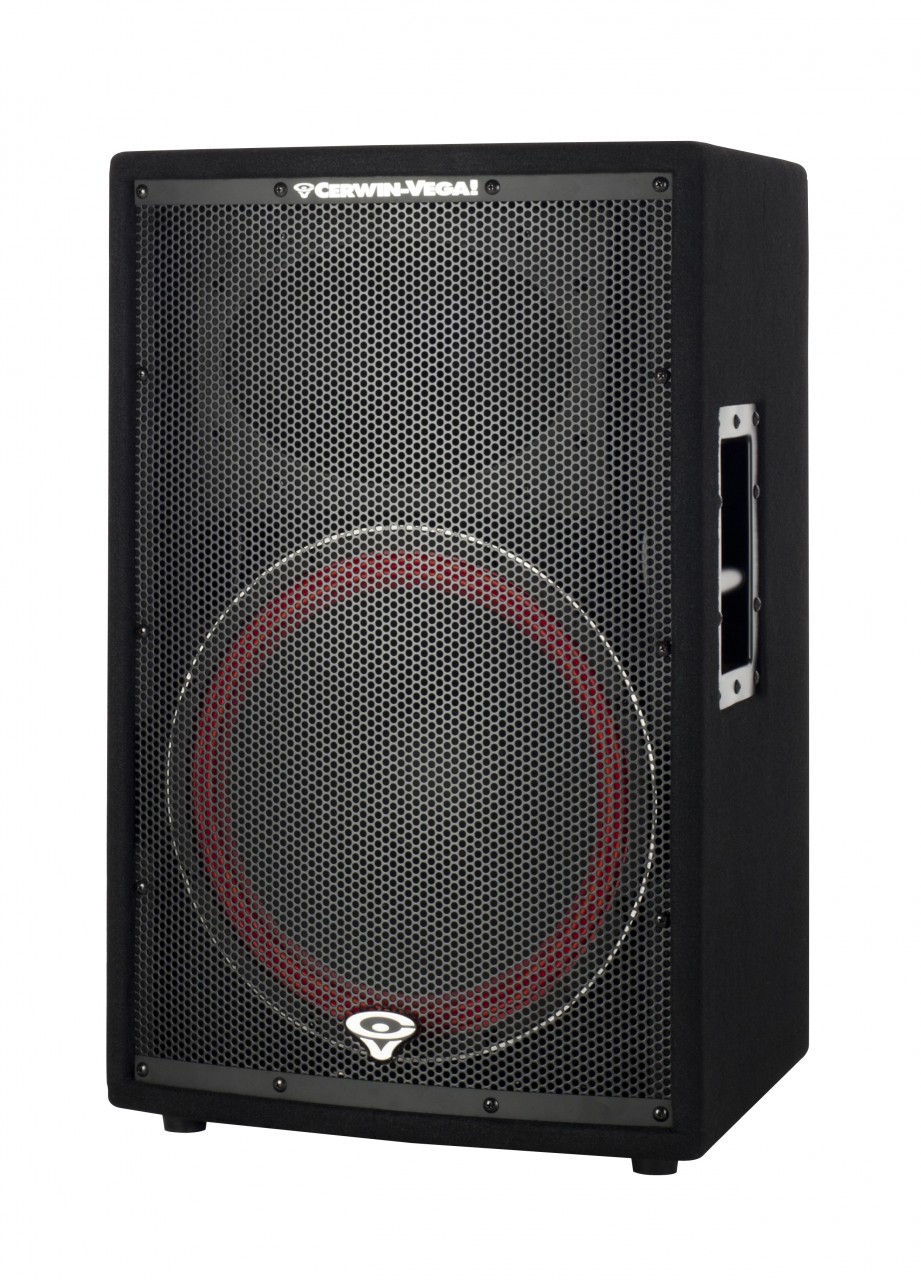

The CVi-152 is a portable, full range, fifteen-inch 2-way main loudspeaker system designed for live music and playback applications. The CVi-152 features a high power, cast frame, fifteen inch transducer with a 2.5 inch voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to a 80° H x 50° V hemi conical horn for smooth, accurate on and off axis high frequency performance. Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.

Performance Data:

• Frequency Response - +/- 3 dB 69 Hz—12 kHz
• Operating Range - -10 dB 45 Hz—20 kHz
• Nominal Impedance (Ohms) - Full Range 8 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 99 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 129 dB
• Power Handling (Watts) - RMS 250 W / Program 500 W / Peak 1000 W
• Nominal Directivity / -6dB points (Degrees) - Horizontal: 80° / Vertical: 50°
