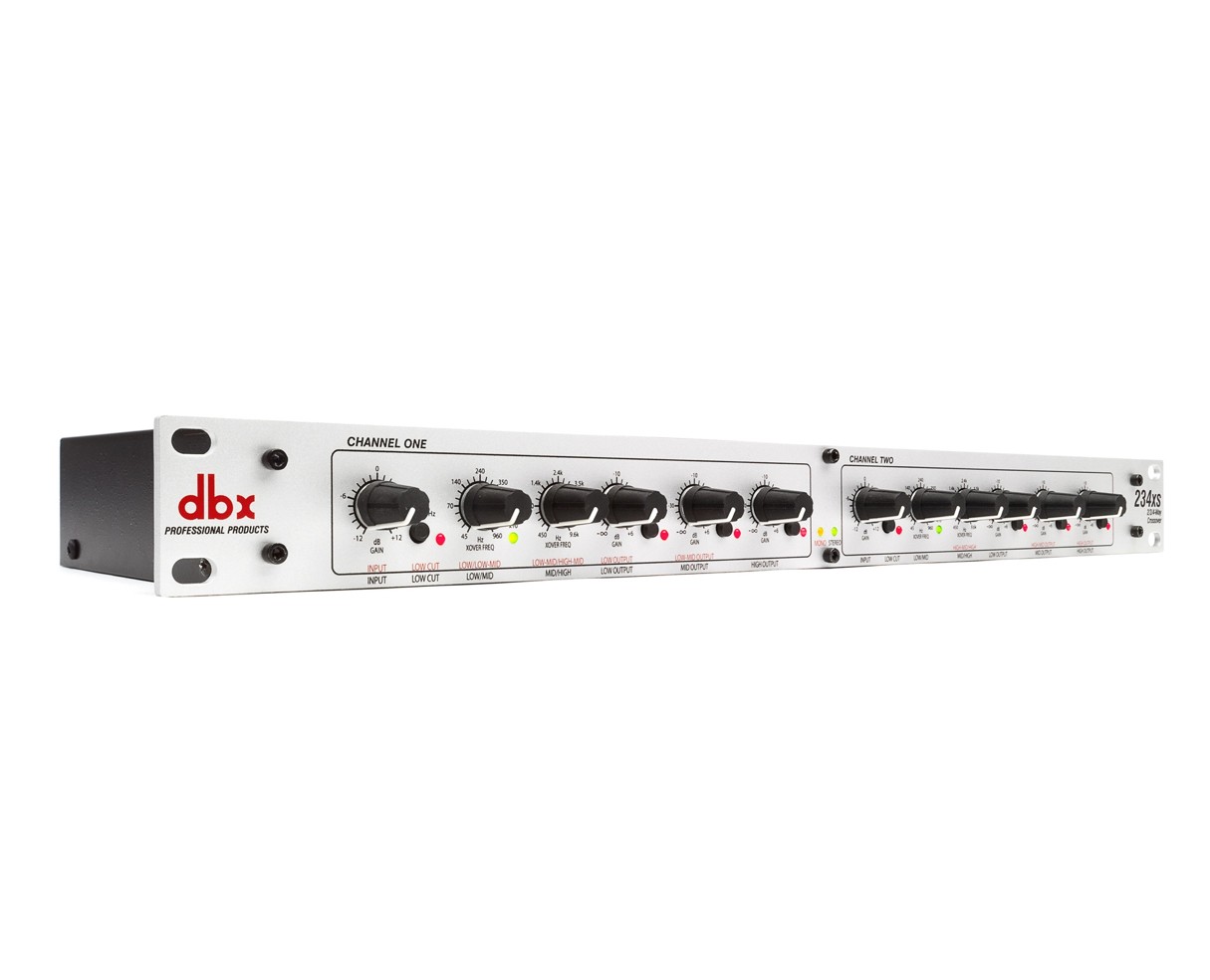

The secret to making speakers sound great lies with the crossover you use. With the dbx® 234xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 234xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 234xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 234xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.

• XLR balanced ins and outs
• Mode switches for mono 4-way or stereo 2-way/3-way operation
• Low frequency summed (subwoofer) output
• x10 range switch on both channels
• 40Hz high pass (low cut) filter both channels
• Phase reverse switch on all outputs
• Individual level controls on all outputs
• 24dB per octave Linkwitz-Riley filters (the professional standard)
• Stereo/Mono status LEDs indicate the selected mode
• dbx® 2 year parts and labor as standard
• CSA NRTL/C approved
• CE compliant

Specifications:

INPUT

Connectors:XLR

Type:Electronically balanced/unbalanced, RF filtered

Impedance:Balanced >50k ohm, unbalanced >25k ohm

Max Input Level:>+21dBu balanced or unbalanced

OUTPUTS

Connectors:XLR

Type:Electronically-balanaced/unbalanced, RF filtered

Impedance:Balanced 60 ohm, unbalanced 300 ohm

Max Output Level:>+20dBu balanced/unbalanced into 600 ohms or greater

CROSSOVER FREQUENCIES

Stereo Mode:Low/High 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low/Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High: 450Hz to 9.6kHz (x10 setting)

Mono Mode:Low/Low-Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low-Mid/High-Mid 450 Hz to 9.6 kHz
High-Mid/High 450 Hz to 9.6 kHz

Filter type:Linkwitz-Riley, 24 dB/octave, state-variable

SYSTEM PERFORMANCE

Bandwidth:20Hz to 20kHz, +0/-0.5dB

 Frequency Response:< 3 Hz to > 90 kHz, +0/-3 dB

 Dynamic Range:> 106 dB, unweighted, any output

Signal-to-Noise:Ref: +4 dBu, 22 kHz measurement bandwidth

THD + Noise:< 0.004% at +4 dBu, 1 kHz
< 0.04% at +20 dBu, 1 kHz

Interchannel Crosstalk:< -80 dB, 20Hz to 20 kHz

Common Mode Rejection:Ref: +4dBu, 22kHz measurement bandwidth

Stereo Mode>94dB (Low Output)
>93dB (Mid Output)
>90dB (High Output)

Mono Mode:>94dB (Low Output)
>94dB (Low/Mid Output)
>92dB (High/Mid Output)
>88db (High Output)

POWER SUPPLY

Operating Voltage:100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz

Power requirements:15W

Operating Temperature:32°F to 113°F (0°C to 45°C)
